Product Summary
The TLP621 is a programmable controller. The TLP621 consists of a photo-transistor optically coupled to a gallium arsenide infrared emitting diode. The TLP621 offers two isolated channels in an eight lead plastic DIP. Applications are (1)Programmable Controller; (2)AC / DC-Input Module; (3)Solid State Relay.
Parametrics
TLP621 absolute maximum ratings: (1)Forward Current IF: 60mA; (2)Power Dissipation (1 Circuit)PD: 100mW; (3)Reverse Voltage VR: 5 V; (4)Junction Temperature Tj: 125 °C; (5)Collector-Emitter Voltage VCEO: 300 V; (6)Emitter -Collector Voltage VECO: 0.3 V; (7)Collector Current IC: 150 mA; (8)Collector Power Dissipation (1 Circuit)PC 150(*300): 100 mW; (9)Junction Temperature Tj: 125 °C; (10)Operating Temperature Range Topr: -55~100 °C; (11)Storage Temperature Range Tstg: -55~125 °C; (12)Lead Soldering Temperature (10s)Tsold: 260(10sec)°C; (13)Total Package Power Dissipation PT: 250mW; (14)Isolation Voltage (AC,1min. , R.H.≤60%)(Note1)BVS: 5000 Vrms.
Features
TLP621 features: (1)Collector-emitter voltage: 55 V (min.); (2)Current transfer ratio: 50% (min.), Rank GB: 100% (min.).

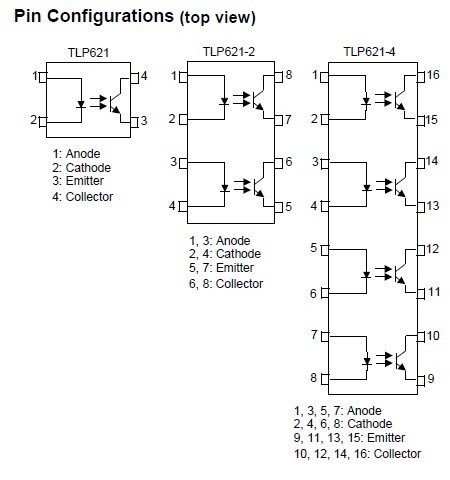

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() TLP621 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() TLP621(BL,F,T) |
![]() Toshiba |
![]() Transistor Output Optocouplers 55Vceo 5000Vrms |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() TLP621(D4GR-F2,F,T |
![]() Toshiba |
![]() Transistor Output Optocouplers VCEO 55V Vrms 5000 IF 16mA VCC 5V-24V |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() TLP621(D4-Y-F2,F,T) |
![]() |
![]() PHOTOCOUPLER TRANS-OUT 4-DIP |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() TLP621(D4-Y-LF2) |
![]() |
![]() PHOTOCOUPLER TRANS-OUT 4-DIP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() TLP621(D4-Y-LF2,T) |
![]() |
![]() PHOTOCOUPLER TRANS-OUT 4-DIP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() TLP621(GR,F,T) |
![]() |
![]() PHOTOCOUPLER TRANS-OUT 4-DIP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() TLP621(GRL,T) |
![]() |
![]() PHOTOCOUPLER TRANS-OUT 4-DIP |
![]() Data Sheet |
![]() Negotiable |
|
